How to use rivets and pull out wrong rivets

time:2021-11-06

Howto use rivets and pull out wrong rivets

幻灯片1

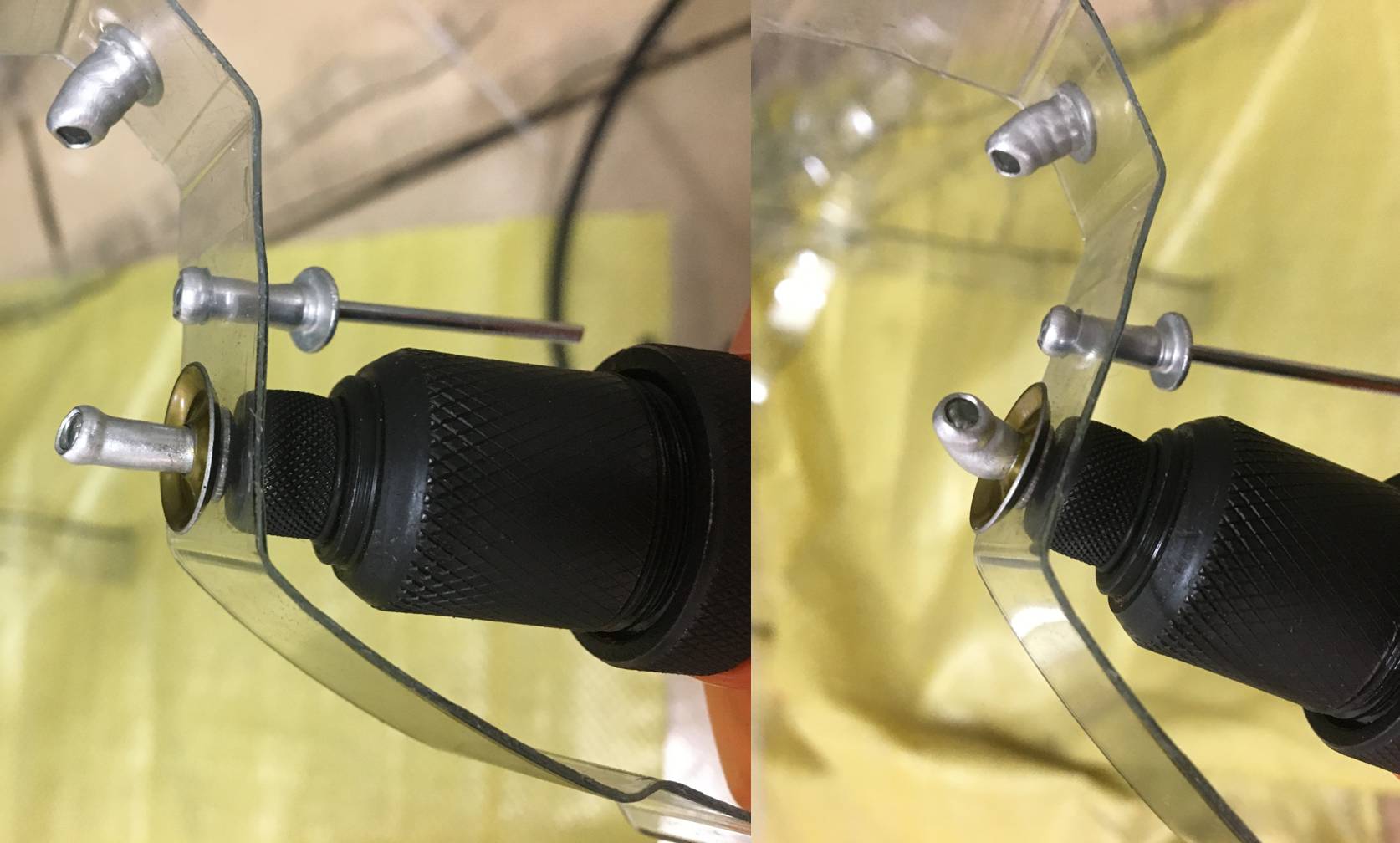

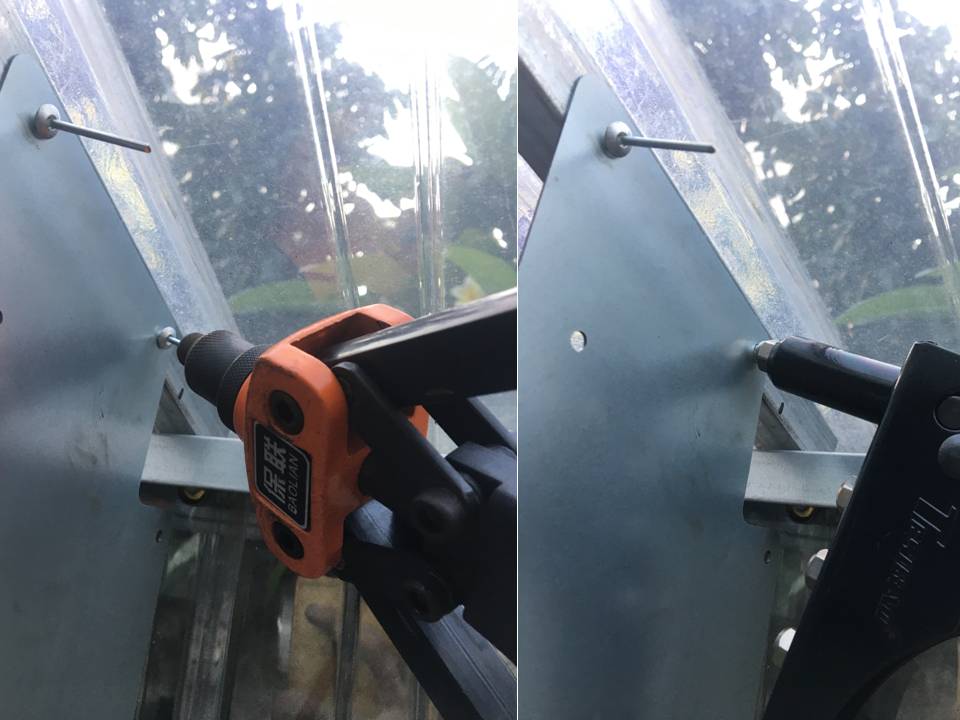

Twotypes of rivet guns.

    A.Itis not very flexible to use, but it is labor-saving. It is used in alarge space environment.

Anddon't worry about nails. If there are nails, you need to unscrew thenuts to remove the broken nails.

    B.Itis convenient to use and can be made from a small angle.

Thedisadvantage is that it is not convenient to disassemble the clip inthe future.

铆钉发布

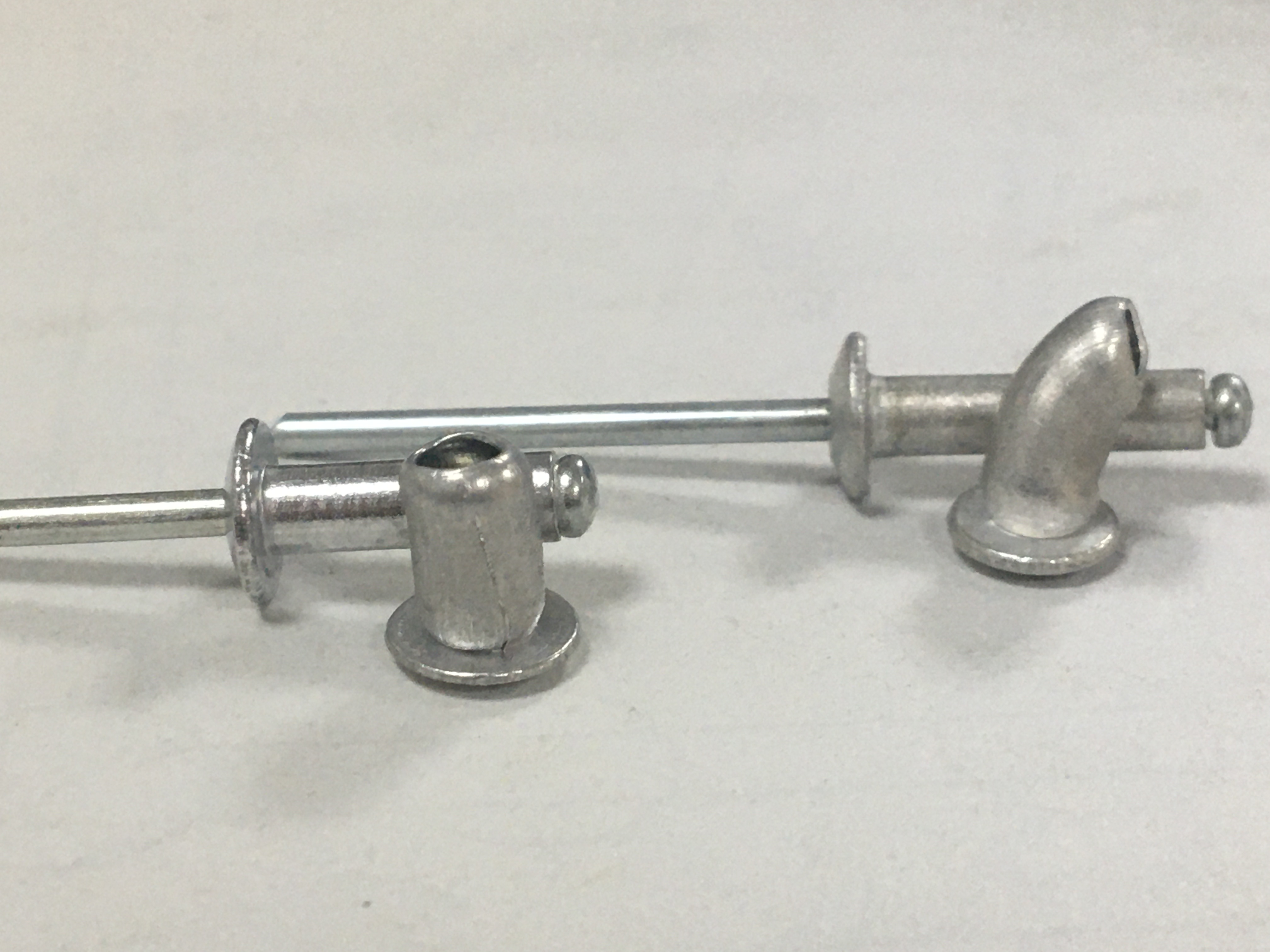

Ihave used different kinds of rivets

IMG_7434发布

Similarly,aluminum as raw material A is harder than B, resulting in differentexpansion effects. The key point is that A is easier to jam the nailgun than B, and it is difficult for the broken tail part to exit thenail gun. be careful!! The prices of A and B are the same,but the practical effects differ greatly!!

演示文稿1

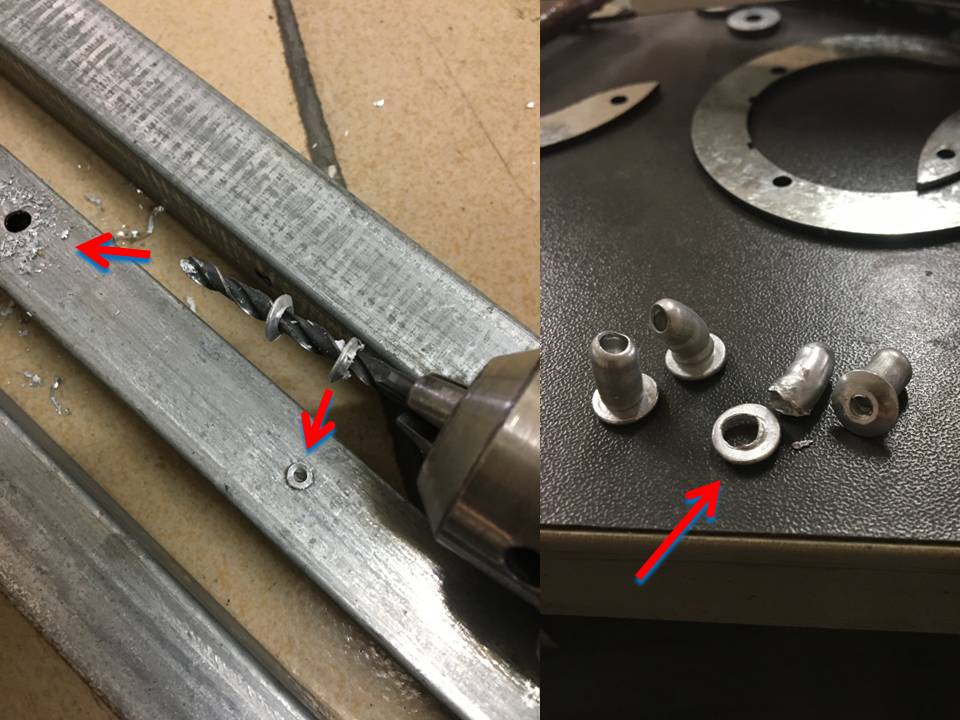

How to pull out the wrong rivet

Use a thread drill with the same diameter to plane away from the rivet center. When the rivet reaches a certain depth, the rivet cap will naturally break.

After disconnection, it can be taken out directly.

演示文稿3
